Description

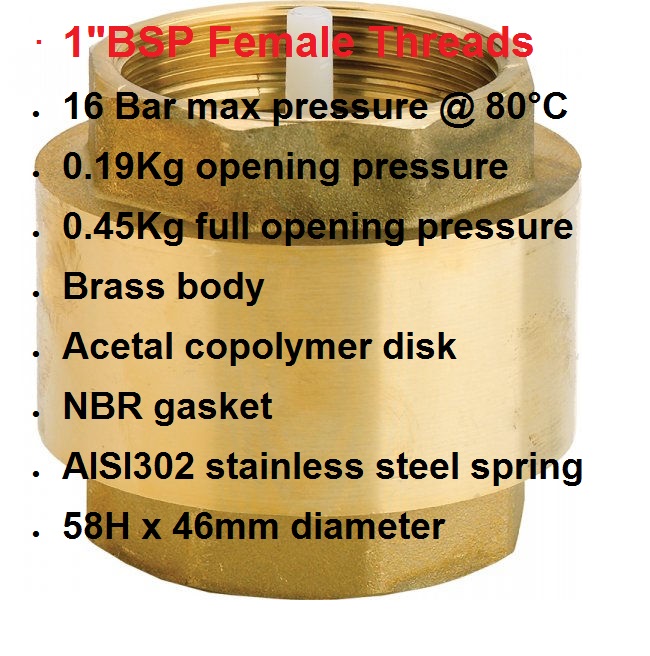

1″ Check Valve NRV 407-1024
4071024
BACK-FLOW PREVENTOR – NON RETURN VALVE – CHECK VALVE – NRV
(ANTI VACUUM DEVICE)
1″ Female BSP Thread Each End
- 1″BSP female threads
- 16 Bar max pressure @ 80°C
- 0.19Kg opening pressure
- 0.45Kg full opening pressure
- Brass body
- Acetal copolymer disk
- NBR gasket
- AISI302 stainless steel spring
- 58H x 46mm diameter
- For a SORTED list by Type & Size of ALL LOW Pressure Fttings – Click Here
- BSP Non Return Valves – Low Pressure – Click Here
This Fitting has BSP Threads
If you don’t know the differance between thread types & sizes –
Should you be ordering them !
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
