Description

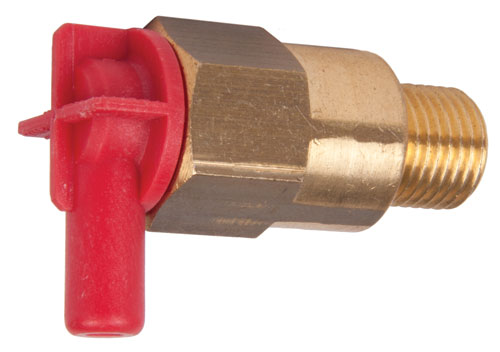

1/4″ Male Pump Thermal Protector 60.0630.00
All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)
VT6 / 60063000
- 10 Bar rated pressure
- 1/4″BSPM inlet
- 7mm 90° hose barb outlet
- 63°C relief temperature
- Protects against excessive heat
- Brass
-
Pump Thermal Protectors for Pressure Washer PumpsMost pressure washer pumps can withstand temperatures of around 40c and in some cases up to 60c, but at higher temperatures damage to the pump can occur. Pump packings, plungers, seals, and even the short bypass hose in external bypass systems may be damaged. Thermal Relief Valves offer some protection against excessive heat build-up. They ensure cool water is released to the pump when temperatures exceed 63c. However if longer running times with no action through the nozzle is required it is far better to have RTT. (RTT = Return To Tank) That’s when the “by-pass” water is returned to the supply tank, this then lets the pump too always have fresh cool water.
-
63°C relief temperature
-
Protects some against excessive heating
-
This Fitting has BSP Threads
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
