Description

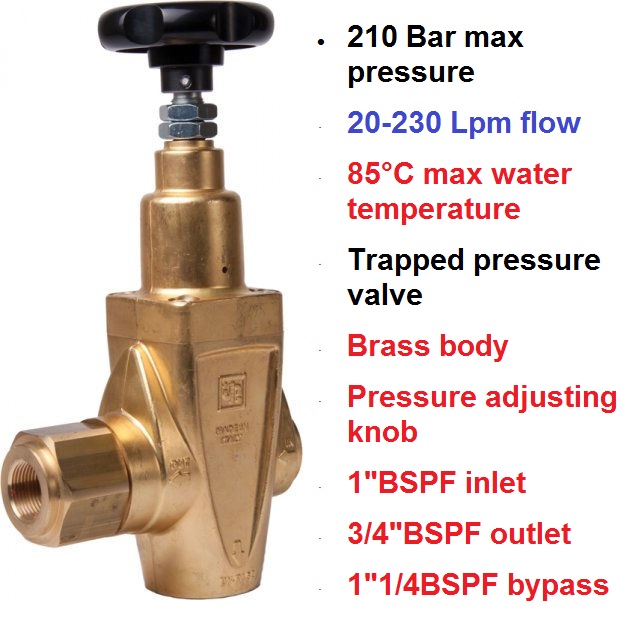

210 Bar 20-230 LPM Pratissoli Pressure Regulating Valve RA2
- 210 Bar max pressure
- 20-230 Lpm flow
- 85°C max water temperature
- Trapped pressure valve
- A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
- Brass body
- Pressure adjusting knob
- 1″BSPF inlet
- 3/4″BSPF outlet
- 1″1/4BSPF bypass
- Call sales office for installation advice
- RA2 Parts List – click here
- RA2 Handbook – click here
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
