210 Bar 20-230 LPM Pressure Regulating Valve RA2L

£1,203.36 £1,444.03 inc vat

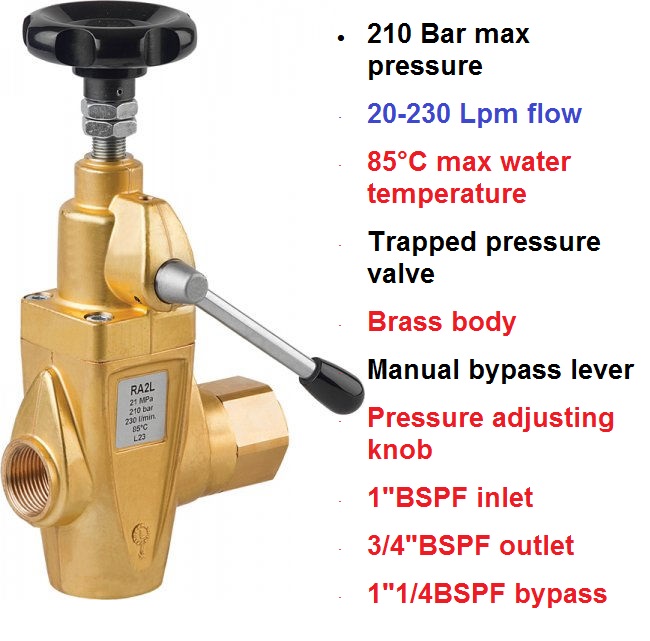

210 Bar 20-230 LPM Pratissoli Pressure Regulating Valve RA2L

All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)

  • 210 Bar max pressure
  • 20-230 Lpm flow
  • 85°C max water temperature
  • Trapped pressure valve
  • A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
  • Brass body
  • Manual bypass lever
  • Pressure adjusting knob
  • 1″BSPF inlet
  • 3/4″BSPF outlet
  • 1″1/4BSPF bypass
  • Call sales office for installation advice
  • RA2L Parts List – click here
  • RA2L Handbook – click here
