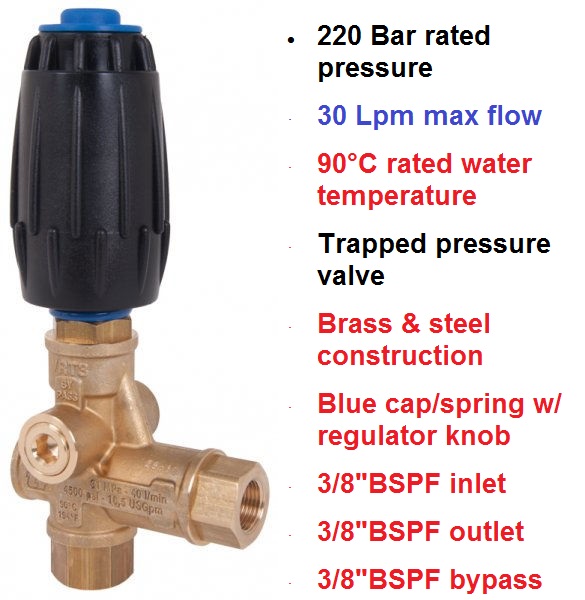

220 Bar 30 LPM VRT3 Pressure Regulating Valve 0215010250

£56.13 £67.36 inc vat

Description

220 Bar 30 LPM VRT3 Pressure Regulating Valve 0215010250

All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)

  • 220 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated water temperature
  • Trapped pressure valve
  • A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
  • Brass & steel construction
  • Blue spring with regulator knob
  • 3/8″BSPF inlet
  • 3/8″BSPF outlet
  • 3/8″BSPF bypass
  • No gauge port
  • VRT3 Parts List – click here
  • VRT3 Technical Data – click here
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
