250 Bar 30 LPM VB9 Unloader Valve & Pressure Switch 60.2350.00

£96.15 £115.38 inc vat

Description

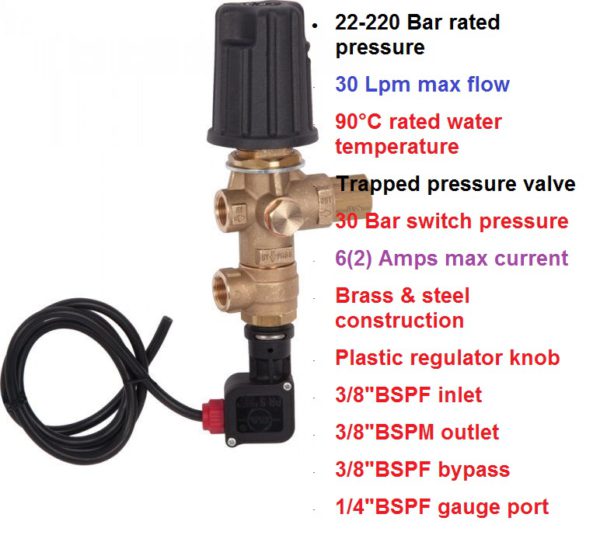

250 Bar 30 LPM VB9 Unloader Valve & Pressure Switch 60.2350.00

All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)

60235000

  • 22-220 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated water temperature
  • Trapped pressure valve
  • A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again.
  • 30 Bar switch pressure
  • 5 Amps max current
  • Brass & steel construction
  • Plastic regulator knob
  • 3/8″BSPF inlet
  • 3/8″BSPM outlet
  • 3/8″BSPF bypass
  • 1/4″BSPF gauge port
  • Parts List – click here
  • Technical Information – click here
