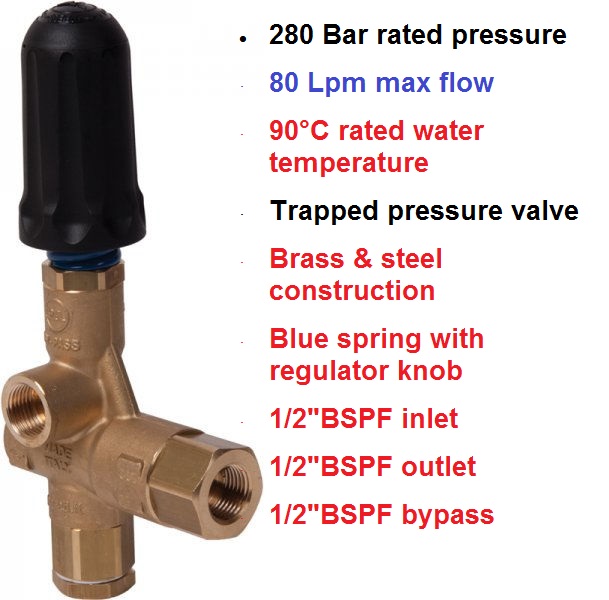

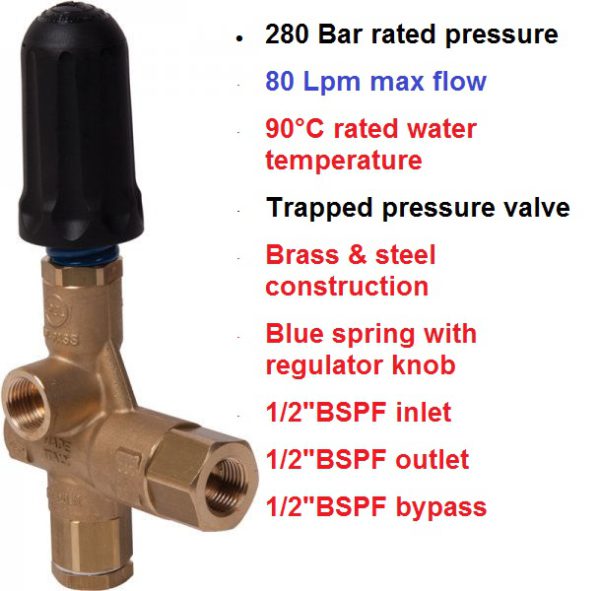

280 Bar 80 LPM VB85/280 Pressure Regulating Valve 60.0490.60

Description

280 Bar 80 LPM VB85/280 Pressure Regulating Valve 60.0490.60

All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)

6004960

• 280 Bar rated pressure
• 80 Lpm max flow
• 90°C rated water temperature
• Trapped pressure valve
• A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
• Brass & steel construction
• Blue spring with regulator knob
• 1/2″BSPF inlet
• 1/2″BSPF outlet
• 1/2″BSPF bypass
• VB85 Parts List – click here
• VB85 Technical Information – click here
• VB80-VB85 Upgrade Info – click here
• PA Valve Manual – click here
