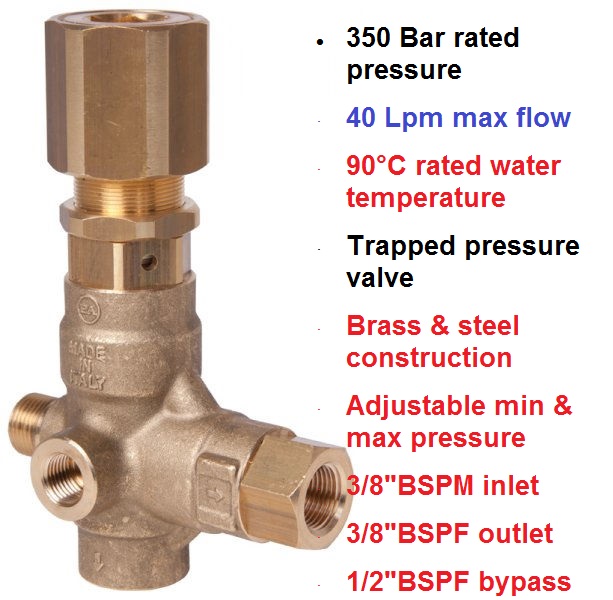

350 Bar 40 LPM VB350S Pressure Regulating Valve 60.1800.00

£105.41 £126.49 inc vat

Description

350 Bar 40 LPM VB350S Pressure Regulating Valve 60.1800.00

All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)

60180000

  • 350 Bar rated pressure
  • 40 Lpm max flow
  • 90°C rated water temperature
  • Trapped pressure valve
  • A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
  • Brass & steel construction
  • Adjustable min & max pressure
  • 3/8″BSPM inlet
  • 3/8″BSPF outlet
  • 1/2″BSPF bypass
  • 1/4″BSP gauge port
  • Parts List – click here
  • Technical Information – click here
  • Maintenance Manual – click here
  • Set Up Guide – click here
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
