500 Bar 60 LPM Pressure Regulating Valve H560

£793.51 £952.21 inc vat

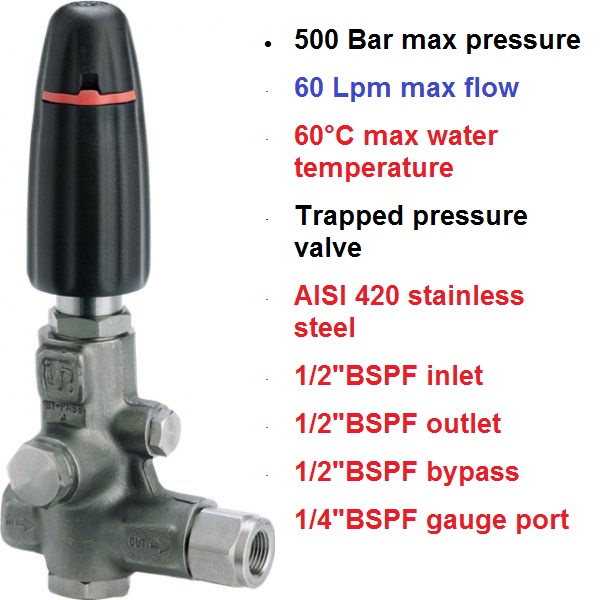

500 Bar 60 LPM Interpump Pressure Regulating Valve H560

All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)

  • 500 Bar max pressure
  • 60 Lpm max flow
  • 60°C max water temperature
  • Trapped pressure valve
  • A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again. – To view Flow Sensitive Unloader Valves – click here
  • Stainless steel
  • 1/2″BSPF inlet
  • 1/2″BSPF outlet
  • 1/2″BSPF bypass
  • 1/4″BSPF gauge port
  • H560 Parts List – click here
  • H560 Handbook – click here
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
