Description

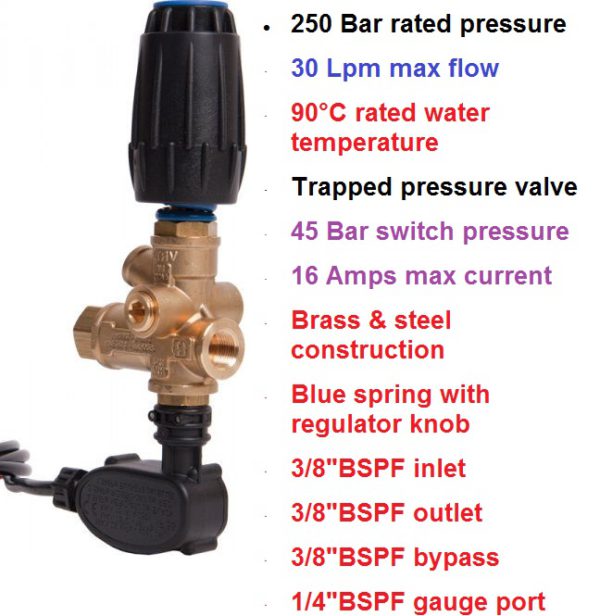

250 Bar 30 LPM VB9 Unloader Valve & Pressure Switch 0215010600
All Orders over £100.00 (net) – Carriage FREE to Mainland UK (Excluding Highlands & Islands)
- 250 Bar rated pressure
- 30 Lpm max flow
- 90°C rated water temperature
- Trapped pressure valve
- A Trapped Pressure unloader valve opens when there is an increase in pressure, so when the trigger on the gun is released the pressure increases within the system and opens the unloader valve sending the water back to a holding tank or back to the inlet side of the pump. The water between the unloader & the nozzle is trapped at high pressure – thus a “kick-back” effect when the trigger on the gun is pulled open again.
- 50 Bar switch pressure
- 16 Amps max current
- Brass & steel construction
- Blue spring with regulator knob
- 3/8″BSPF inlet
- 3/8″BSPF outlet
- 3/8″BSPF bypass
- 1/4″BSPF gauge port
- VRT3 + PS6 Parts List – click here
- Parts List – Pre 10/2010 VRT Valve – click here
- VRT3 + PS6 Technical Information – click here
- PS6 Pressure Switch Technical Info – click here
- PS6 Internals Photo – click here
All item descriptions and illustrations are provided in good faith and are intended for guidance only and the actual items may vary
